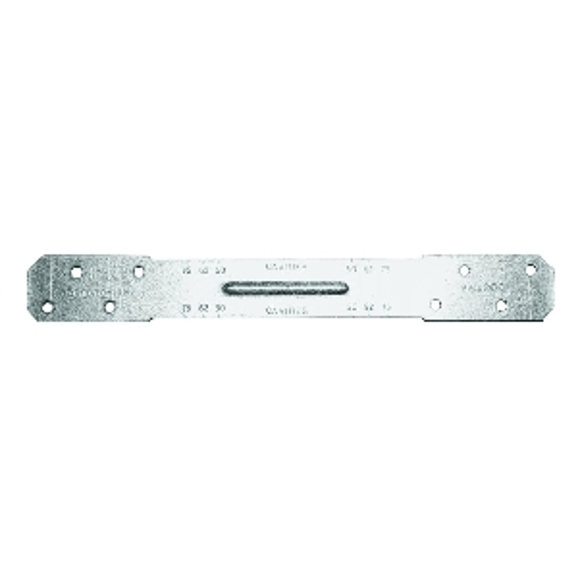

The PWT200 is the first connector specifically designed and engineered to
connect the party walls of timber framed buildings.
It’s manufactured using minimum material section for optimum sound
performance. This allows the tie to meet the requirements of Part E of the
Building Regulations (Resistance to the Passage of Sound), whilst incorporating a unique stiffening rib for maximum structural capacity. The Party Wall Tie has cavity widths of 50, 62 and 75mm stamped on the upper surface to help check for a consistent cavity width up through the building.
- Meets the requirements of Part E of The Building Regulations (Resistance to the Passage of Sound).
- Suits timber frame party wall cavities from 50 to 75mm.
- Can be used on closed panel construction – where 50mm stiffening rib helps to check that minimum 50mm cavity width has been achieved.
- Minimum material section for optimum sound performance.
